Introduction of PX High Efficiency Fine Crusher:
PX high efficiency crusher is developed by Phoenix according to the current market demand. It has the advantages of stable and reliable operation, simplified process, simple structure, convenient maintenance, large production capacity and long service life of hammer head. It is widely used for fine crushing of granite, basalt, limestone, River pebble, cement clinker, quartz, iron ore, bauxite and other minerals. It is also used for producing high-quality stone in mechanized artificial sand making, high-grade highway, railway, water conservancy, airport, construction, cement, refractory, metallurgy and other industries.
Principle of PX High Efficiency Fine Crusher:
When the crusher is working, driven by the motor, the rotor rotates at high speed, so that the material enters the first crushing chamber and crushes after impact with the plate hammer on the rotor, then enters the second crushing chamber for crushing, and finally discharges from the outlet.
Performance characteristics of PX high-efficiency fine crusher:
1. Compared with the traditional gravel crusher, it saves 50% energy, works steadily and saves 45% maintenance cost.
2. The use of grate plate design and steel hard extrusion crushing greatly improves the efficiency of fine crushing.
3. High linear speed, fast operation, power saving and consumption reduction are better than traditional roll press.
4. Wearable parts have a long use time and are made of wear-resistant materials, which are durable.
5. The investment is about 40% less than the traditional process of the same scale, the output is about 30% higher, the operation and maintenance cost is lower than the traditional scale, and the investment is cost-effective.
PX High Efficiency Crusher Parameters:
|
Model
|
Maximum
feed size
(mm)
|
Discharge
particle size
(mm)
|
processing capacity
(t/h)
|
Motor power
(kw)
|
Outline size
(mm)
|
|
Cement clinker
|
limestone
|
|
PX-8040
|
80
|
3
|
15-20
|
20-25
|
37
|
1395*1506*1390
|
|
PX-8080
|
80
|
3
|
25-30
|
30-40
|
45
|
1395*1906*1390
|
|
PX-9080
|
100
|
3
|
40-45
|
45-50
|
55
|
1754*1906*1659
|
|
PX-9010
|
100
|
3
|
45-50
|
50-55
|
75
|
1754*2176*1659
|
|
PX-1010
|
150
|
3-5
|
50-60
|
60-70
|
90
|
2138*2590*2021
|
|
PX-1210
|
200
|
3-5
|
60-80
|
70-90
|
110
|
2524*2761*2325
|
|
PX-1212
|
200
|
3-5
|
60-100
|
70-110
|
132
|
2524*2866*2325
|
|
PX-1414
|
200
|
5-8
|
70-150
|
70-160
|
200
|
2550*3120*2670
|
|
PX-1616
|
200
|
5-8
|
100-210
|
110-260
|
250
|
2922*3564*2900
|
|
PX-1818
|
200
|
5-10
|
120-270
|
130-310
|
315
|
3121*3754*3150
|
Note: If the parameters are updated, please contact us without further notice.

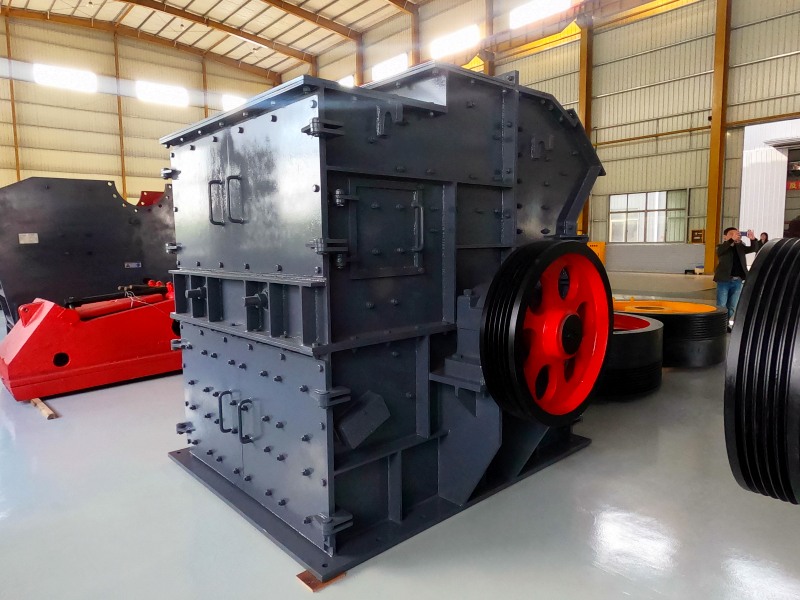

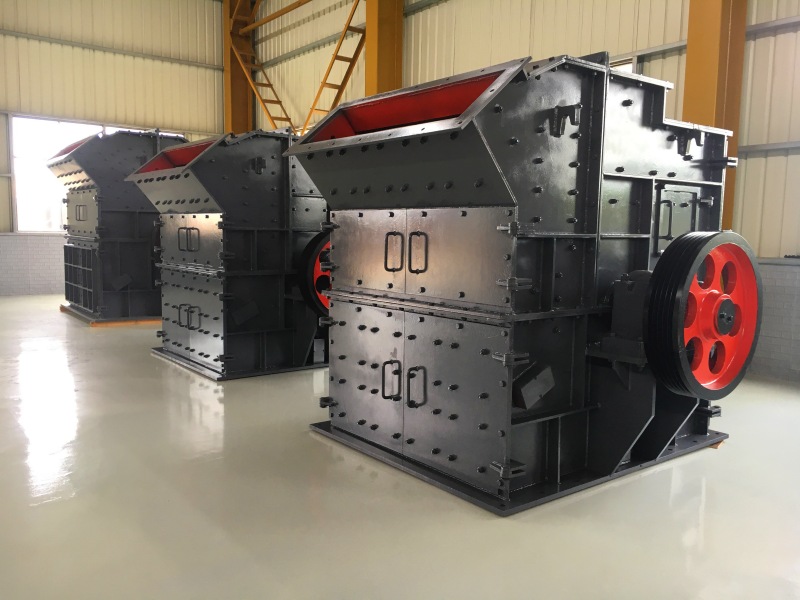

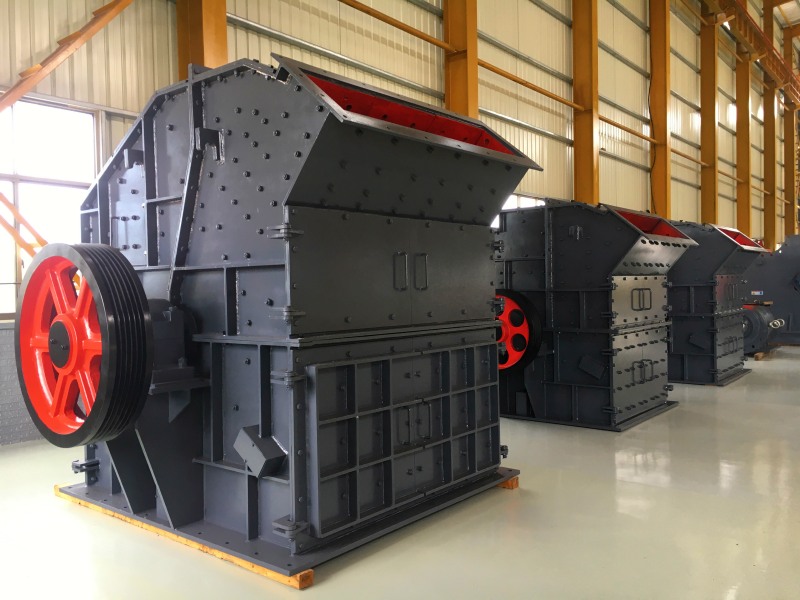

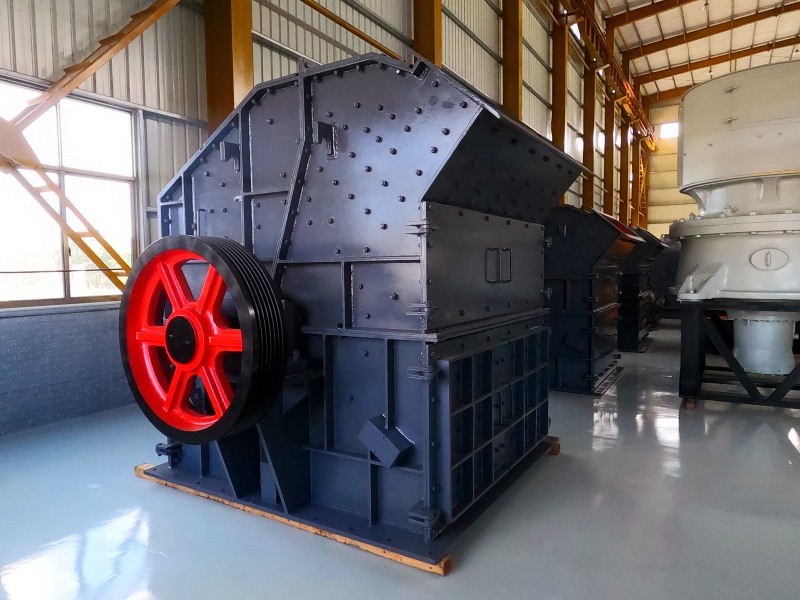

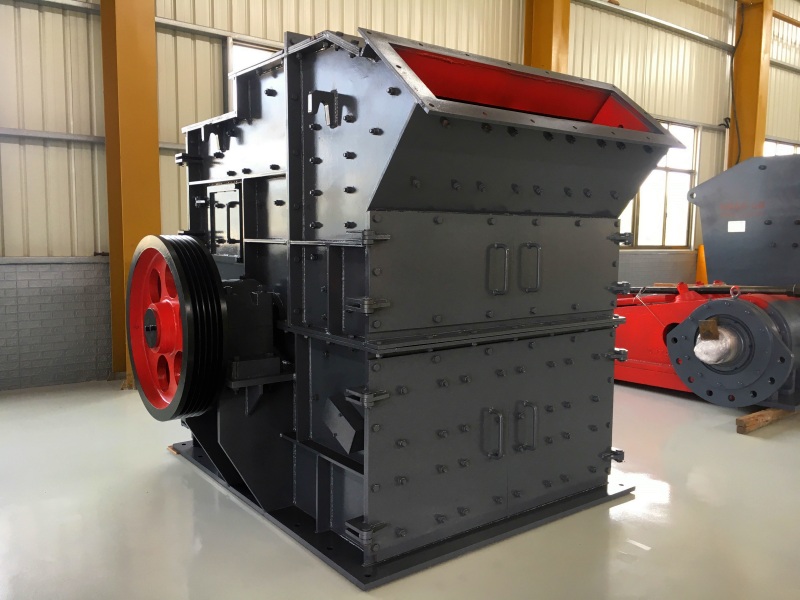

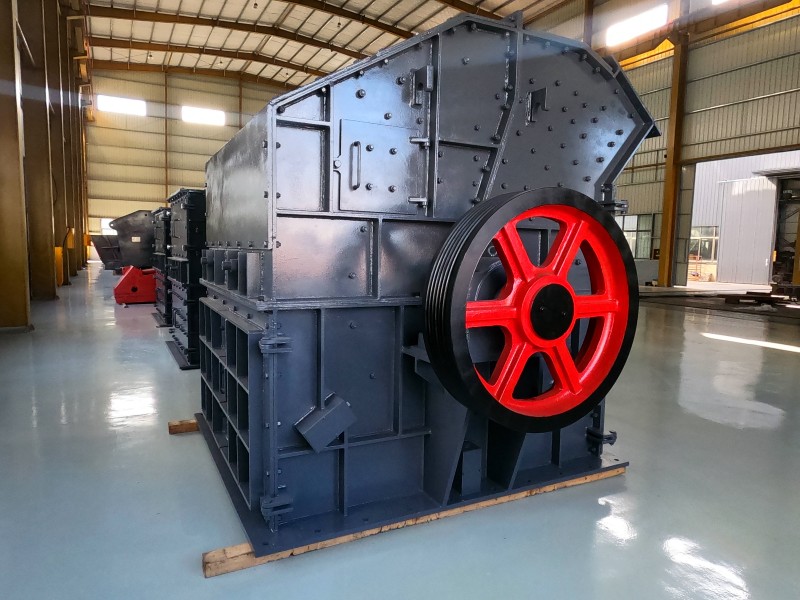

PX High Efficiency Fine Crusher Exit Picture:
PX High Efficiency Fine Crusher Delivery Picture:
PX High Efficiency Fine Crusher Field Pictures:
Effective Crusher Video:
High-efficiency finer price:
The price is determined by the model chosen by the customer, so please call for it.
Purchasing Telephone for High Efficiency Fine Crusher Phone: +86-021-33781259 Email：
[email protected]
