Hydraulic cone crusher is a modern high-performance hydraulic cone crusher developed by Phoenix based on lamination crushing principle and conceptual design of more breakage and less grinding, which integrates high swing frequency, optimized cavity type and reasonable stroke. This series of cone crushers are generally engaged in the second or third stage of crushing, especially for materials with medium hardness or higher, which has obvious crushing effect.
Hydraulic cone crusher principle:
When the hydraulic cone crusher works, the rotation of the motor swings around a fixed point under the force of eccentric sleeve through the belt pulley or coupling, the drive shaft of the cone crusher and the cone of the cone crusher. Thus, the conical crushing wall is sometimes close to the surface of the mortar wall fixed on the adjusting sleeve, and the ore is continuously impacted, squeezed and bent in the crushing chamber to realize the crushing of the ore.
Performance characteristics of hydraulic cone crusher:
The combination of high performance crushing chamber and high crushing frequency greatly improves the processing capacity of conical crusher. Because of the lamination crushing principle, the crushing products are mostly cubic structure, which greatly reduces needle-like materials. The conical crusher has simple structure, easy operation, maintenance, convenient and quick adjustment of discharge and outlet, time-saving and labor-saving maintenance, especially the lining plate is easy to replace quickly, which reduces the downtime.
When the non-breakable foreign body passes through the crushing chamber or the machine is overloaded for some reason, the cone crusher spring insurance system realizes the insurance, and the cone crusher discharges more ore. Foreign bodies are discharged from the crushing chamber of the cone crusher. If foreign bodies are stuck in the discharging outlet, the clearing chamber system will continue to increase the discharging volume, and the foreign bodies will be discharged from the crushing chamber of the cone crusher. Under the action of spring, the discharging outlet of cone crusher is automatically reset and the cone crusher returns to normal operation. Cone crusher series crushers can be divided into three types: coarse crusher, medium crusher and fine crusher. They can be purchased according to different needs of users.
Hydraulic cone crusher parameters:
|
Model
|
Cavity
type
|
Diameter
of crushing
cone(mm)
|
Adjustment
range of
discharge outlet
(mm)
|
Maximum
feed size
(mm)
|
Processing
capacity
(t/h)
|
Motor
power
(kw)
|
Weight
(kg)
|
Outline
size
(L*W*H)(mm)
|
|
1300 |
PYFB-1313 |
Standard fine form |
1295 |
13-31 |
115 |
109-181 |
160 |
22476 |
2983*1866*3156 |
|
PYFB-1321 |
Standard medium |
16-38 |
178 |
132-253 |
22167 |
|
PYFB-1324 |
Standard coarse form |
19-51 |
205 |
172-349 |
22120 |
|
PYFB-1325 |
Standard extra-coarse type |
25-51 |
220 |
236-358 |
22125 |
|
PYFD-1306 |
Short headed fine type |
3-16 |
54 |
36-163 |
21703 |
|
PYFD-1308 |
Short head medium |
6-16 |
78 |
82-163 |
21675 |
|
PYFD-1310 |
Short head coarse pattern |
8-25 |
89 |
109-227 |
21789 |
|
PYFD-1313 |
Short Head Extra Coarse Type |
16-25 |
113 |
209-236 |
21821 |
|
1600 |
PYFBII-1620 |
Standard fine form |
1676 |
16-38 |
178 |
181-327 |
250 |
41460 |
3900*2930*3242 |
|
PYFBII-1624 |
Standard medium |
22-51 |
205 |
258-417 |
41087 |
|
PYFBII-1626 |
Standard coarse form |
25-64 |
228 |
299-635 |
40834 |
|
PYFBII-1636 |
Standard extra-coarse type |
38-64 |
313 |
431-630 |
40674 |
|
PYFDII-1607 |
Short headed fine type |
5-13 |
60 |
90-209 |
40734 |
|
PYFDII-1608 |
Short head medium |
6-19 |
76 |
136-281 |
40614 |
|
PYFDII-1613 |
Short head coarse pattern |
10-25 |
113 |
190-336 |
40531 |
|
PYFDII-1614 |
Short Head Extra Coarse Type |
13-25 |
129 |
253-336 |
40374 |
|
2100 |
PYFBII-2127 |
Standard fine form |
2134 |
19-38 |
236 |
544-1034 |
400 |
86730 |
4613*3302*4638 |
|
PYFBII-2133 |
Standard medium |
25-51 |
284 |
862-1424 |
|
PYFBII-2136 |
Standard coarse form |
31-64 |
314 |
1125-1814 |
|
PYFBII-2146 |
Standard extra-coarse type |
38-64 |
391 |
1252-1941 |
|
PYFDII-2110 |
Short headed fine type |
5-16 |
89 |
218-463 |
89500 |
|
PYFDII-2113 |
Short head medium |
10-19 |
113 |
404-580 |
|
PYFDII-2117 |
Short head coarse pattern |
13-25 |
151 |
517-680 |
|
PYFDII-2120 |
Short Head Extra Coarse Type |
16-25 |
172 |
580-744 |
Note: If the parameters are updated, please contact us without further notice.
PY Hydraulic Cone Crusher Exit Picture:

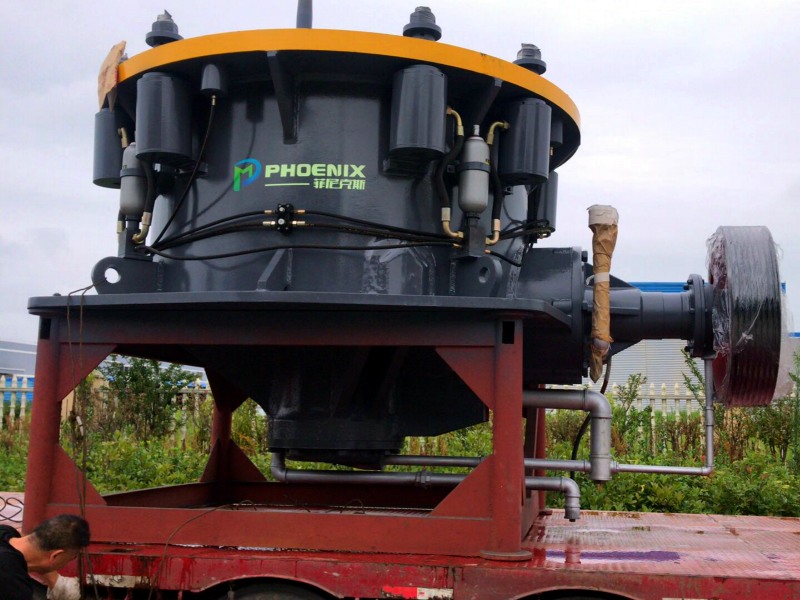

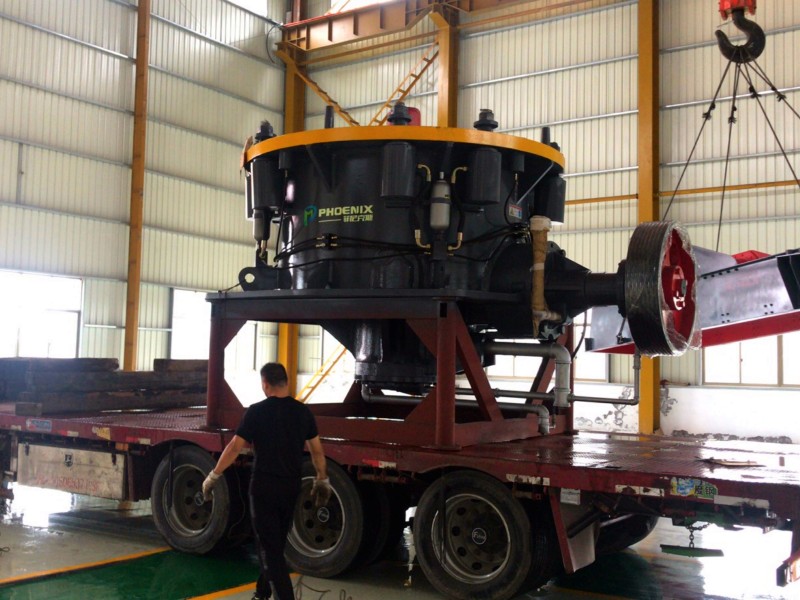

PY hydraulic cone crusher delivery pictures:

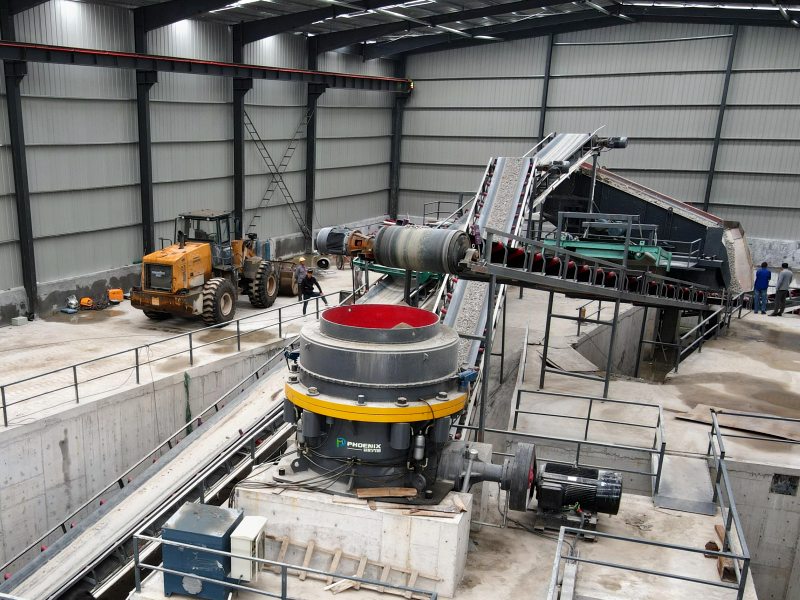

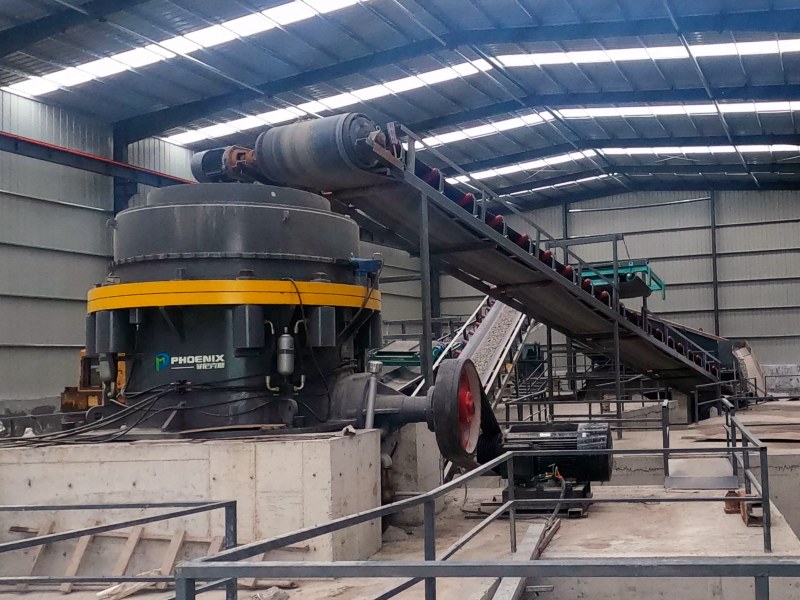

PY hydraulic cone crusher scene picture:
Hydraulic cone crusher video:
Hydraulic cone crusher price:
The price is determined by the model purchased by the customer, so please call the customer to request it.
